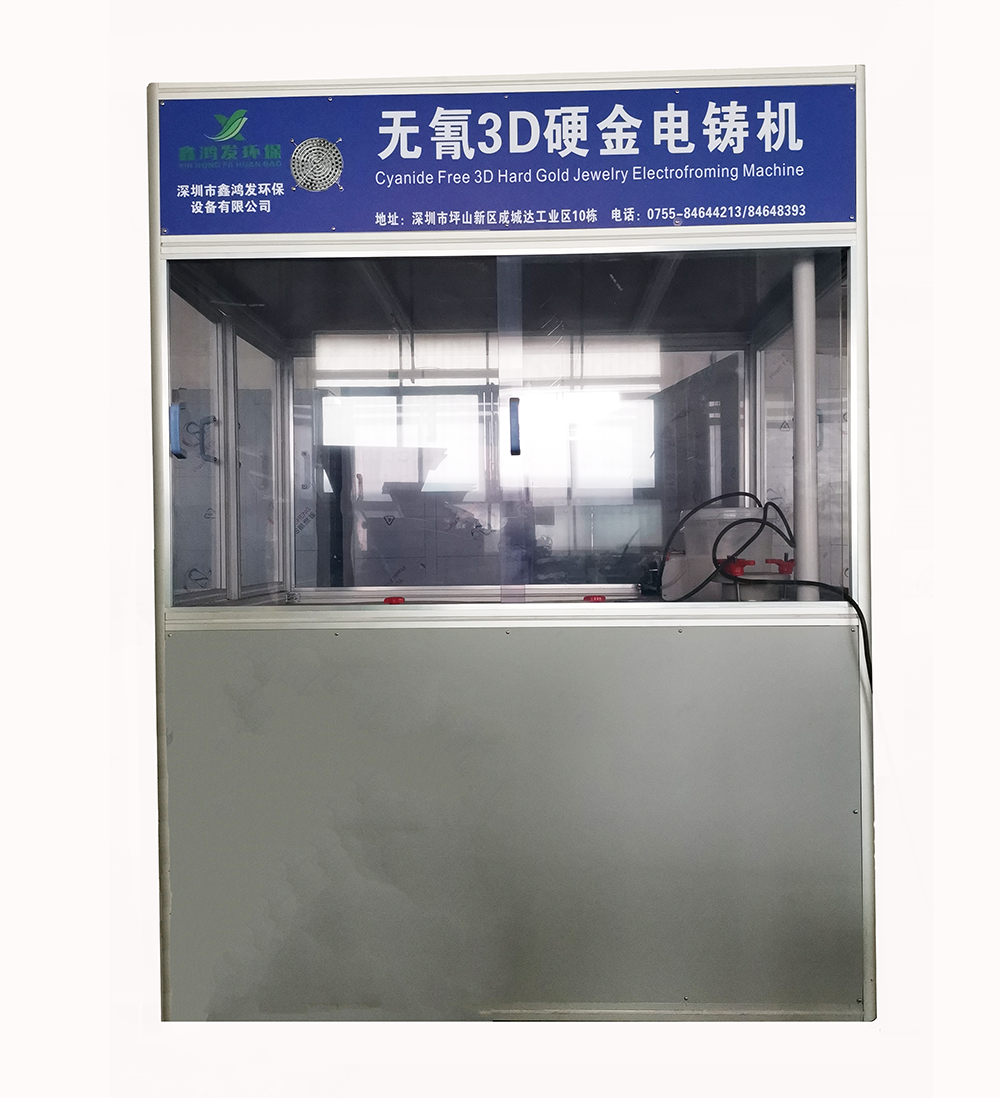

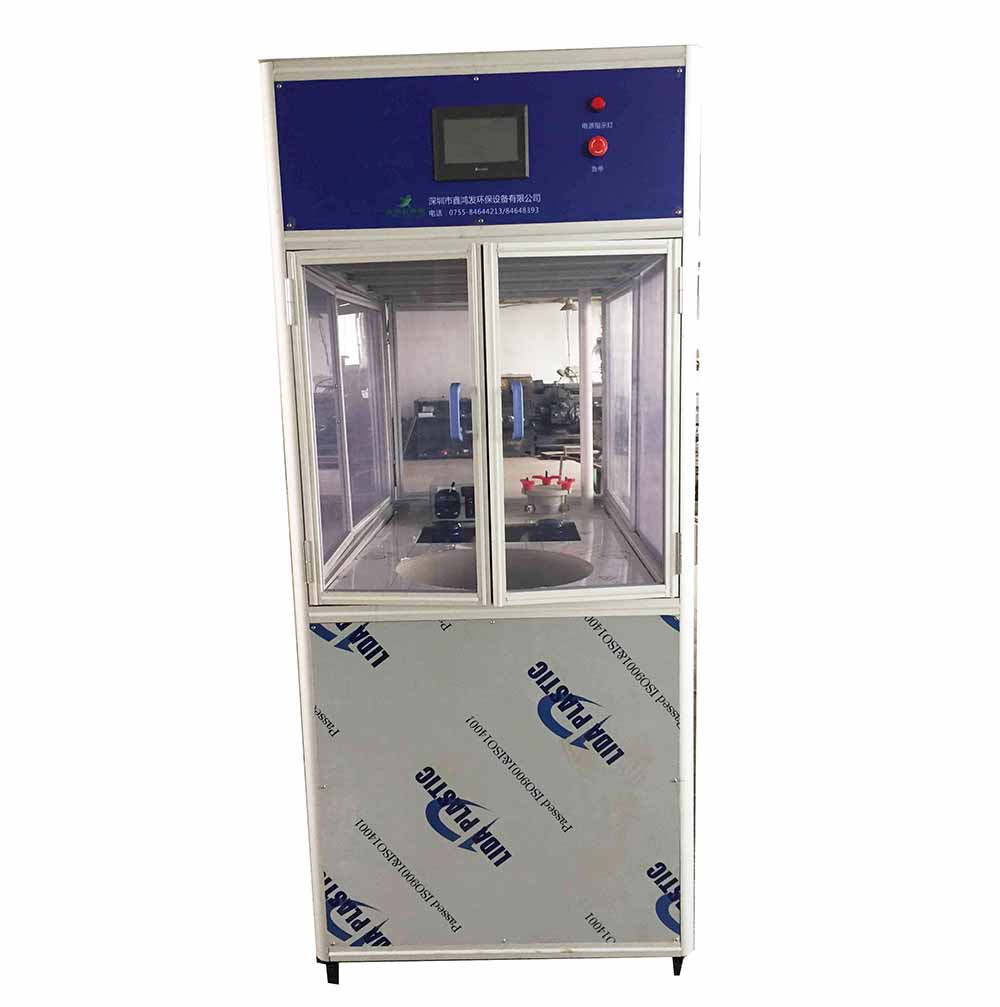

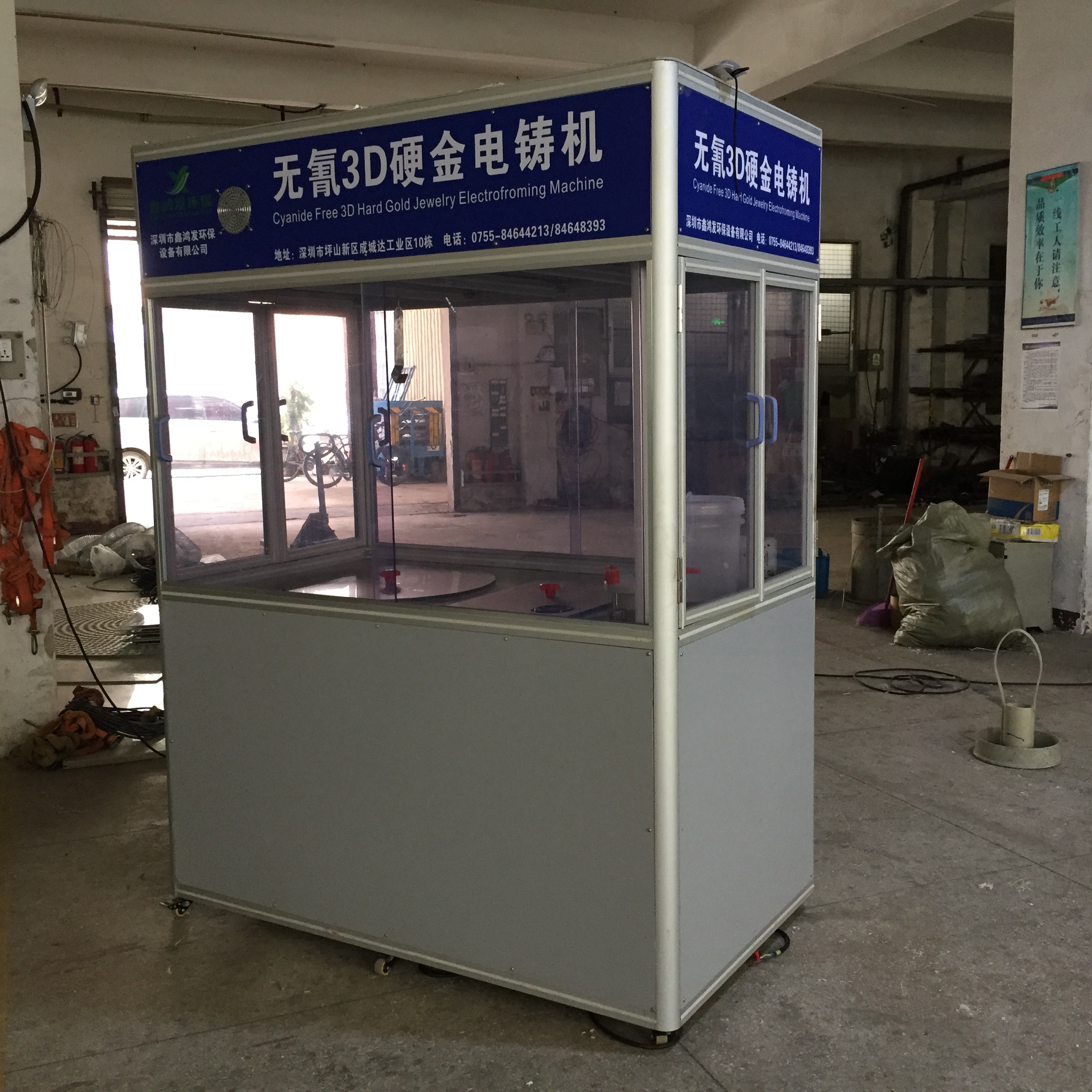

Cyanide-Free 24K Hard Gold Jewelry Electroforming Machine

Voltage	Video Outgoing-inspection	Key Selling Points	Machine Type	Weight(KG)	Brand Name	Heating System	MOQ	Payment Method	Core Components	Machinery test report	Warranty	Power(W)	Place of Origin	Product Name	Filter System	Function	Trade Terms	Selling Units	Single Package Size	Single Gross Weight
220V	Provided	Long Service Life	5D Gold Jewelry Electroforming Machine	250	XHF	2KW	1SET	L/C,T/T,Western Union,Paypal	Motor,Pump	Not Available	1 Year	3KW	Guangdong,China	Cyanide Free 3D 24K Hard Gold Jewelry Electroforming Machine	RTG-1001	Making Gold Jewelry	EXW,FCA,FOB,CFR,CIF,DDP,DDU.etc	Single Item	152*105*127(cm)	250.000KG

Cyanide Free Electroforming machine for 3D hard gold jewelrys
3D hard gold / silver jewelry electroforming machine can be used to electroform the following products:
1: all kinds of gold pendants, gold bracelets, gold rings, gold bracelets and anklets, etc.

The main system parameters of machine (the machine can be customized)

Machine configuration:

1. The precision and stability rectifier for electroforming : power is 50A/12V

2. Automatic dosing pump: Automatically add medicine through PLC program control. realize automatic and accurate addition of medicine liquid.

3. The PLC control system:

1) The electroforming ampere time value is set through the PLC control system to control the automatic dosing time and the amount of medicine liquid added.

2) Control the circulation and filtration speed of electroforming liquid through PLC control

3) Control the electroforming time through PLC control, When the set time is up, the machine will automatically stop working.

4) Control the electroforming current through PLC control.

5) Control the swing forward and reverse time and swing forward and reverse speed through the PLC system.

4. Electronic constant temperature control device: equipped with electric heating pipe and temperature control box, temperature control accuracy is ±1℃.

5. Electronic time control device: the electroforming time can be preset, reaching the preset time alarm.

6. The electroforming liquid circulation pump: equipped with corrosion-resistant circulation pump to circulating the electroforming liquid.

7. The electroforming liquid filter pump: equipped with corrosion-resistant filter pump to filter the electroforming liquid.

8. Anode and cathode conductive device: high stability of platinum titanium net as the anode to ensure quality of the electroforming jewelry.

9. Water level automatic control and alarm device: the minimum liquid level of electroforming tank can be preset, when the water level is too low ,it will alarm and automatically stop working,

Advantage of the machine

1. Good quality : though the selection of corrosion-resistant materials and accurate welding to make this machine, for ensuring no liquid leakage.

2. The function of liquid circulation filter is to ensure the electroforming liquid uniform and less impurities, in order to make jewelry more beautiful.

3. The PLC control system: All functions of the machine are controlled by PLC, which makes the operation more convenient.

4. The overload protection and phase failure protection is to ensure the machine safety.

5. Operational safety: electroforming tank can be equipped with a transparent slot cover and security lock to keep the liquid clean and personal safety.

6. Resources recycling system: the machine was equipped with liquid recovery basin, for the recovery of precious metals.

Parameters description.

 1.   Each set of  cyanide free 24K 3D  hard gold  jewelry electroforming machine comprises rectifier, circulating filtration device, temperature control, time control and artifact rotation devices, cathode and anode conductive device as well as necessary safety devices. Chemical liquid used for electroforming (company can be provided separately) and hanging tray or fixtures (to be customized based on actual artifact) are not included.

electroforming power rectifier    cathode and anode                     hanging tray       filter

2. Chemical liquid used for electroforming (company can be provided separately) and artifact hangers or fixtures (to be customized based on actual artifact) are not included, you need to purchase it separately, our company also supply it.

3. This device parameters are for reference only. Anode and cathode distance and the current density can be adjusted depending on different artifacts, in order to achieve the best electroforming effect.

4. Company provides design and manufacture of the entire production line of cyanide free 3D hard gold / silver ornaments electroforming. You’re welcomed to give us a call or visit us.

Company also supply the following surporting equipment of cyanide free 3D hard gold electroforming equipment.
